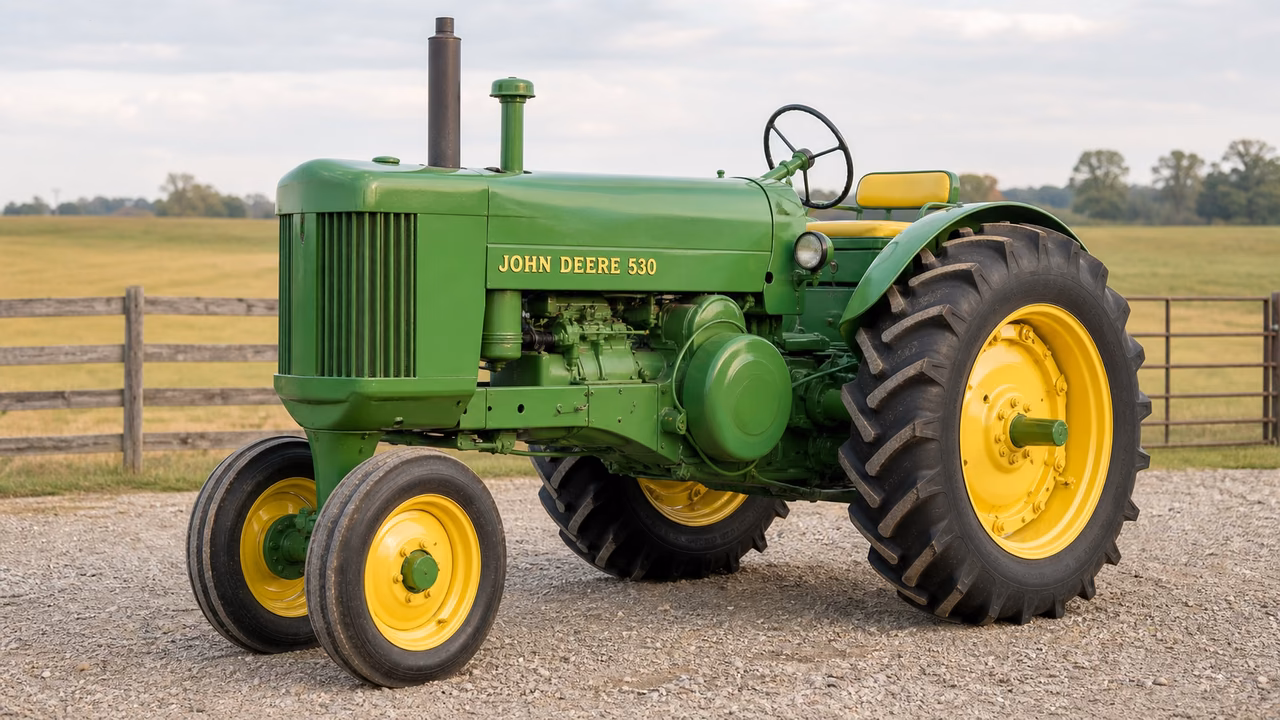

John Deere 530 Overview
The John Deere 530 was produced from 1958 to 1960, with 9,800 units recorded. Its 189.8 ci (3.1 L) engine is rated at 1,325 rpm, and the transmission has 6 forward and 1 reverse gear with a dry-disc clutch. The rear PTO is independent and listed at 540. For the all-fuel configuration, fuel capacity is 15.5 gal. Serial numbers begin at 5,300,000 for 1958 and end at 5,309,814.
John Deere 530 Quick Answers
- YearsJohn Deere produced the 530 from 1958 through 1960.
- EngineThe engine is 189.8 ci (3.1 L) and rated at 1,325 rpm.
- TransmissionThe unsynchronized gear transmission has 6 forward and 1 reverse gear with a dry-disc clutch.
- Serial rangeThe documented serial range runs from 5,300,000 in 1958 to 5,309,814 at the end.
Engine and Power
The engine record identifies 189.8 ci displacement and a 1,325 rpm rating.
Gasoline engine
| Displacement | 189.8 ci 3.1 L |
|---|---|
| Rated Rpm | 1325 |
| Coolant Capacity | 26 qts 24.6 L |
Engine option 2
| Displacement | 189.8 ci 3.1 L |
|---|---|
| Rated Rpm | 1325 |
LP-gas engine
| Displacement | 189.8 ci 3.1 L |
|---|---|
| Rated Rpm | 1325 |
Manufacture years
Transmission
Transmission details show an unsynchronized 6-forward, 1-reverse layout with a dry-disc clutch.
6-speed unsynchronized gear
| Type | unsynchronized gear |
|---|---|
| Gears | 6 forward and 1 reverse |
| Clutch | dry disc |
PTO and Hitch
The rear PTO is independent and listed at 540; the rear hitch is marked as optional Type II.
Rear PTO
Rear PTO type
Rear hitch
Fluids, Battery, and Service Facts
For the all-fuel configuration, the tank is listed at 15.5 gal; coolant capacity is 26 qts.
Fuel tank
Serial Number Lookup
The serial rows start at 5,300,000 for 1958 and finish at 5,309,814.
1958
last
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
