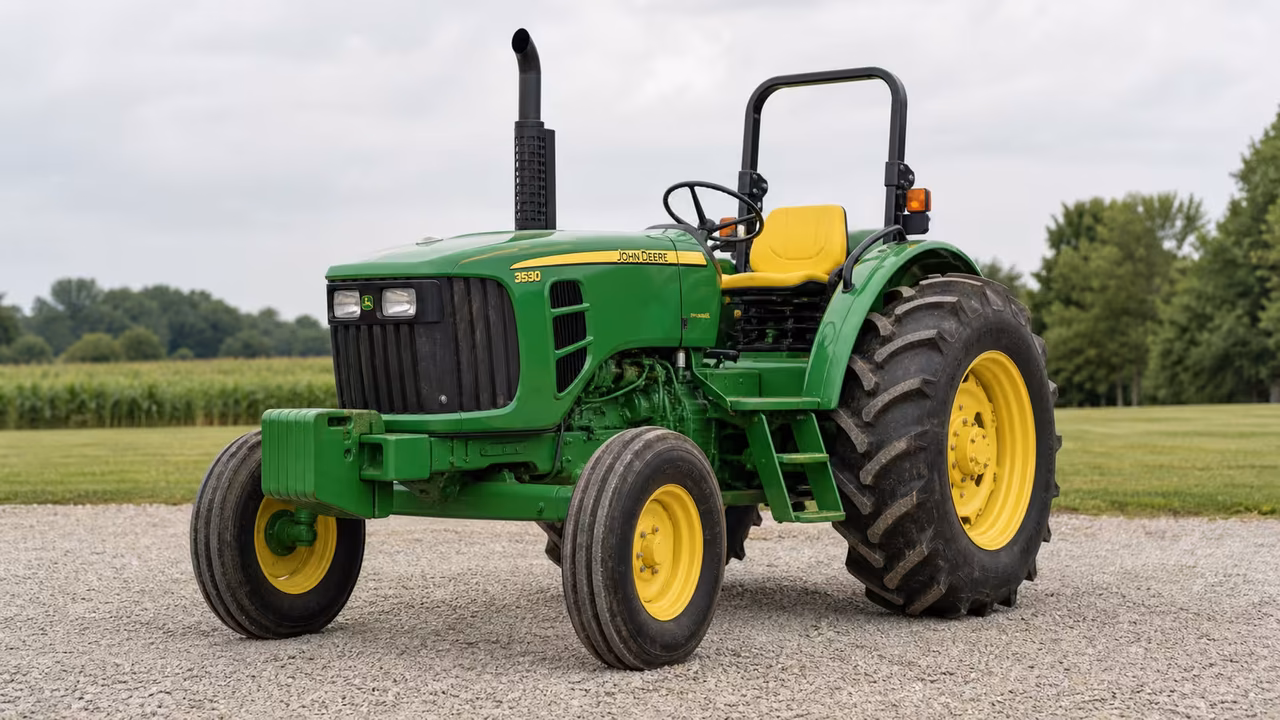

John Deere 3530 Overview
John Deere 3530 was built from 1975-1980. The published engine record lists a 328.9 ci 5.4 L engine with a published 105 hp 78.3 kW rating at 2500 rpm. The published drivetrain is listed as Syncro-Range transmission and 8 forward and 2 reverse gears.
The rear PTO is listed as independent rear PTO and 540 PTO. Hydraulic specifications list closed center hydraulics. The rear hitch is listed as a Category II rear hitch. Published capacities include 38.3 gal 145.0 L fuel capacity, 13.75 qts 13.0 L engine oil capacity, 21.1 qts 20.0 L coolant capacity, 12.9 gal 48.8 L hydraulic-system capacity, and 51.8 qts 49.0 L transmission-oil capacity. Published weight listings include 12070 lbs 5474 kg.
John Deere 3530 Quick Answers
- When was the John Deere 3530 built?John Deere 3530 is listed from 1975-1980. Use the full identification tag and configuration details to narrow down an individual machine.
- What engine is listed for a John Deere 3530?The published engine record lists a 328.9 ci 5.4 L engine with a published 105 hp 78.3 kW rating at 2500 rpm. Match the engine before applying a setting, capacity, or parts detail to a particular tractor.
- What transmission does the John Deere 3530 use?The published drivetrain is listed as Syncro-Range transmission and 8 forward and 2 reverse gears. Identify the installed transmission and serial number before using repair or parts information.
- What PTO is listed for the John Deere 3530?The rear PTO is listed as independent rear PTO and 540 PTO. Confirm the installed PTO equipment and driveline arrangement before implement setup or diagnosis.
- What hydraulic system is listed?Hydraulic specifications list closed center hydraulics. Installed valves, remotes, and equipment must be identified on the tractor before diagnosis or parts work.
- Which capacity and chassis details matter?Published capacities include 38.3 gal 145.0 L fuel capacity, 13.75 qts 13.0 L engine oil capacity, 21.1 qts 20.0 L coolant capacity, 12.9 gal 48.8 L hydraulic-system capacity, and 51.8 qts 49.0 L transmission-oil capacity. The rear hitch is listed as a Category II rear hitch. Published weight listings include 12070 lbs 5474 kg.
Engine and Power
The published engine record lists a 328.9 ci 5.4 L engine with a published 105 hp 78.3 kW rating at 2500 rpm. Confirm the engine before applying a specification, capacity, or parts detail to a particular tractor.
Diesel engine
John Deere / diesel / 6-cylinder / liquid-cooled
| Displacement | 328.9 ci 5.4 L |
|---|---|
| Bore Stroke | 4.016x4.331 inches 102 x 110 mm |
| Power | 105 hp 78.3 kW |
| Fuel System | direct injection |
| Rated Rpm | 2500 |
| Starter Volts | 12 |
| Engine Oil Capacity | 13.75 qts 13.0 L |
| Coolant Capacity | 21.1 qts 20.0 L |
Manufacture years
Transmission
The published drivetrain is listed as Syncro-Range transmission and 8 forward and 2 reverse gears. Match the installed transmission and serial number before treating a repair or parts detail as a direct match.
Syncro-Range
| Name | Syncro-Range |
|---|---|
| Gears | 8 forward and 2 reverse |
| Transmission Oil Capacity | 51.8 qts 49.0 L |
PTO and Hitch
The rear PTO is listed as independent rear PTO and 540 PTO. Confirm the actual shaft, PTO equipment, and driveline behavior before setting up an implement.
Rear PTO
Rear PTO type
Rear hitch
Hydraulics
Hydraulic specifications list closed center hydraulics. A listing does not identify every valve, remote, or attachment fitted to an individual tractor.
Type
Capacity
Fluids, Battery, and Service Facts
Published capacities include 38.3 gal 145.0 L fuel capacity, 13.75 qts 13.0 L engine oil capacity, 21.1 qts 20.0 L coolant capacity, 12.9 gal 48.8 L hydraulic-system capacity, and 51.8 qts 49.0 L transmission-oil capacity. Use model- and configuration-matched literature for fluid grades, intervals, fill procedures, and adjustment details.
Fuel tank
Hydraulic system
Battery volts
Battery Ah
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Wheelbase
Weight
Length
Width
Front tire
Rear tire
Ag front
Ag rear
Electrical
Electrical rows are included when documented.
Charging system
Charging amps
Battery volts
Manuals and Documents
John Deere's official Manuals and Training service is the starting point for operator, technical, and parts-catalog publications. Search with the model and serial number before relying on a document.
For any repair or order, record the full serial number, engine, transmission, PTO arrangement, hydraulic equipment, axle or drive configuration, and installed options before relying on a document or illustration.
Reference page
- John Deere Manuals and Trainingoperation, maintenance, and specifications
Official John Deere route for operator, technical, and parts-catalog publications. Search with the model and serial number.
Open John Deere manuals
Parts catalog
- John Deere Parts Catalogparts matching
Official John Deere parts-catalog route. Match the model, serial number, and equipment before ordering.
Open parts catalog
Parts Checks Before Ordering
Start with the tractor's full serial number, then identify the engine, transmission, PTO, hydraulic equipment, axle or drive configuration, and installed options. Model and production years alone do not confirm fitment.
A parts catalog can help identify assemblies and reference numbers, but it does not prove fitment for an individual John Deere 3530. Verify the tag and the actual tractor before ordering.
- John Deere Parts CatalogOfficial John Deere parts-catalog route. Match the model, serial number, and equipment before ordering.Open parts catalog
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
