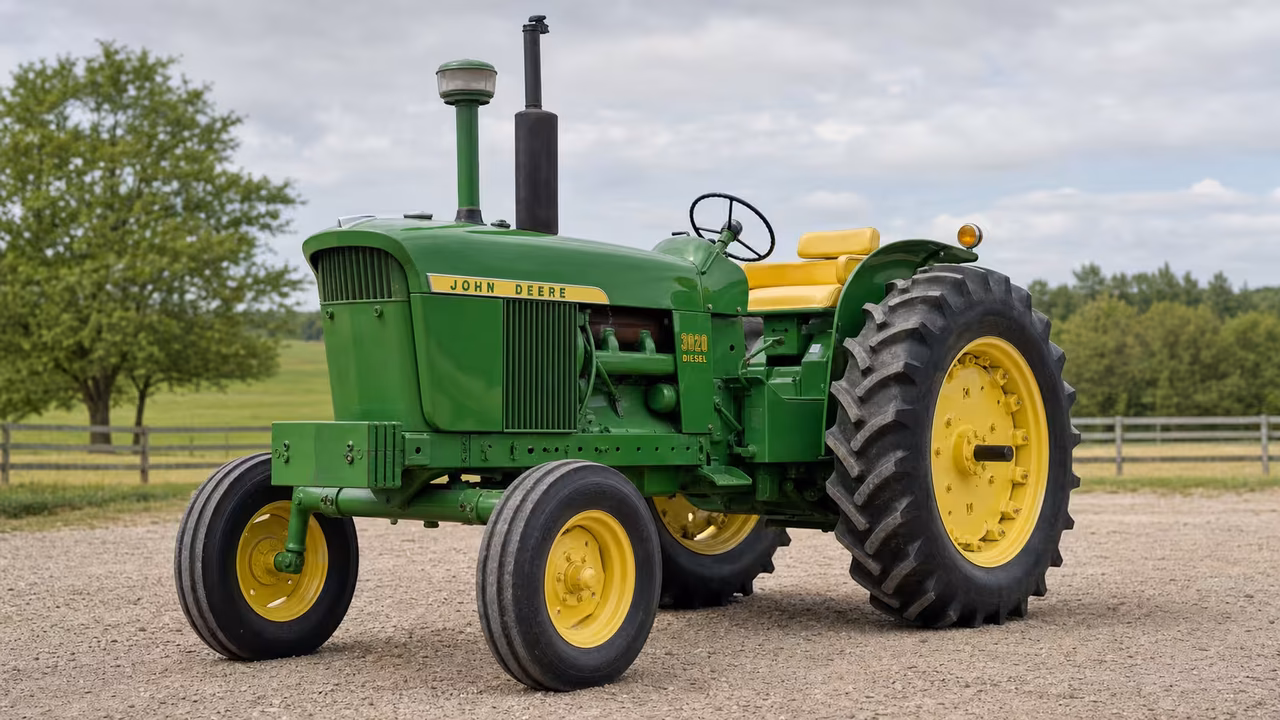

John Deere 3020 Overview
The John Deere 3020 was built from 1964 through 1972 with gasoline, diesel, and LP-gas engine listings, plus Syncro-Range and Power Shift transmission coverage. Those splits matter more than the model badge when you are comparing specs or ordering parts.
Confirm the serial range, fuel type, transmission, PTO, and hydraulic setup before choosing service parts or applying a procedure. The technical manual, Deere parts pages, and Nebraska Test 848 help keep the table tied to a real configuration.
- JD 3020
- Deere 3020
John Deere 3020 Quick Answers
- Production yearsThe John Deere 3020 was produced from 1964 through 1972.
- PowerNebraska Test 848 on a John Deere 3020 Diesel Power Shift tractor recorded 65.28 maximum PTO hp and 54.77 drawbar hp in the two-hour maximum-available-power run. Do not use those numbers as blanket gasoline, LP-gas, or Syncro-Range ratings.
- EngineThe listed engines are gasoline and LP-gas 227 cu in (3.7 L) four-cylinders, plus a diesel 270 cu in (4.4 L) four-cylinder.
- PTO and hitchThe rear PTO is listed as independent, with 540/1000 speed coverage on a 1.375 in shaft, plus a Category II rear hitch.
- Service capacityCapacity data lists 9 qt (8.5 L) engine oil where documented, plus 32 qt (30.3 L) for Syncro-Range transmission oil or 44 qt (41.6 L) for Power Shift.
Engine and Power
The 3020 engine data is split by fuel. Gasoline and LP-gas entries use the 227 ci four-cylinder, while the diesel entry uses the 270 ci four-cylinder and different compression, starter-voltage, and valve-clearance values.
Gasoline engine
| Bore Stroke | 4.25x4.00 inches 108 x 102 mm |
|---|---|
| Air Cleaner | oil bath |
| Compression | 7.5:1 |
| Rated Rpm | 2500 |
| Operating Rpm | 1500-2500 |
| Firing Order | 1-3-4-2 |
| Starter Volts | 12 |
| Sparkplug Gap | 0.025 inches 0.635 mm |
| Point Gap | 0.022 inches 0.559 mm |
| Intake Valve Clearance | 0.015 inches 0.381 mm |
| Exhaust Valve Clearance | 0.028 inches 0.711 mm |
Diesel engine
| Bore Stroke | 4.25x4.75 inches 108 x 121 mm |
|---|---|
| Air Cleaner | oil bath |
| Pre Heating | ether injection |
| Compression | 16.5:1 |
| Rated Rpm | 2500 |
| Operating Rpm | 1500-2500 |
| Firing Order | 1-3-4-2 |
| Starter Volts | 24 |
| Engine Oil Capacity | 9 qts 8.5 L |
| Intake Valve Clearance | 0.018 inches 0.457 mm |
| Exhaust Valve Clearance | 0.018 inches 0.457 mm |
LP-gas engine
| Bore Stroke | 4.25x4.00 inches 108 x 102 mm |
|---|---|
| Air Cleaner | oil bath |
| Compression | 9.0:1 |
| Rated Rpm | 2500 |
| Operating Rpm | 1500-2500 |
| Firing Order | 1-3-4-2 |
| Starter Volts | 12 |
| Engine Oil Capacity | 9 qts 8.5 L |
| Sparkplug Gap | 0.015 inches 0.381 mm |
| Point Gap | 0.022 inches 0.559 mm |
| Intake Valve Clearance | 0.015 inches 0.381 mm |
| Exhaust Valve Clearance | 0.028 inches 0.711 mm |
Manufacturer
Manufacture years
Transmission
The 3020 transmission data separates Syncro-Range and Power Shift tractors. Both list eight forward speeds, but reverse speeds, clutch type, and oil capacity differ, so service checks should follow the transmission on the tractor.
John Deere Syncro-Range
| Name | John Deere Syncro-Range |
|---|---|
| Type | partially synchronized |
| Gears | 8 forward and 2 reverse |
| Clutch | dry disc |
| Transmission Oil Capacity | 32 qts 30.3 L |
John Deere Powershift
| Name | John Deere Powershift |
|---|---|
| Type | full power shift |
| Gears | 8 forward and 4 reverse |
| Clutch | hydraulic wet disc |
| Transmission Oil Capacity | 44 qts 41.6 L |
PTO and Hitch
PTO and hitch data lists an independent rear PTO with 540/1000 speed coverage and a Category II rear hitch. A mid-type 1000 PTO is also documented, so match implements to the actual PTO equipment and shaft on the tractor.
Rear PTO
Rear PTO type
Engine RPM
Rear hitch
Hydraulics
Hydraulic specs are listed as closed center with 2100 psi pressure, 14 gpm total flow, and about 6 gpm SCV flow. Valve count, pump condition, remote plumbing, and later repairs still matter on a working tractor.
Type
Pressure
Total flow
Valves
Fluids, Battery, and Service Facts
The maintenance data is useful for capacities and tune-up values, but it needs the engine and transmission beside it. It includes 9 qt engine-oil entries where listed, 32 qt Syncro-Range and 44 qt Power Shift transmission entries, and 12 V or 24 V starter entries depending on engine.
Fuel tank
Battery volts
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Wheelbase
Weight
Length
Width
Front tire
Rear tire
Ag front
Ag rear
Electrical
Electrical rows are included when documented.
Ground
Charging system
Battery volts
Serial Number Lookup
The serial table gives the starting chassis serial for each model year from 1964 through 1972. Use it to narrow the year, then use the tractor's full serial and model code to identify fuel, chassis, transmission, and build details.
1964
1965
1966
1967
1968
1969
1970
1971
1972
Manuals and Documents
Use these links to check the service manual, parts catalog access, and test report that match the tractor's serial range and equipment.
When a source covers more than one setup, confirm the fuel type, transmission, PTO setup, and serial range before using it for parts or service.
Service manual
- TM1005: 3020 Tractor Technical Manualoperation, maintenance, lubrication, parts matching
Official John Deere service/technical manual for the 3020 tractor family (Syncro-Range and Powershift variants).
Open source
Manufacturer document
- Manuals and Training | Parts & Service | John Deere USparts catalog
Official repository for operator manuals, service manuals, and parts catalogs for John Deere equipment, including the 3020 family.
Open source
Parts catalog
- John Deere Parts | Parts & Services | John Deereparts matching
Official parts catalog access for John Deere equipment, including 3020 model family; supports parts matching.
Open source
Tractor test report
- Test 848: John Deere 3020 Dieseltested performance
Nebraska Tractor Test Laboratory report for a John Deere 3020 Diesel Power Shift tractor tested in 1963.
Open source
Parts Checks Before Ordering
Do not order John Deere 3020 parts from the model name alone. Match the part to the tractor's model code, serial range, engine, transmission, PTO setup, and build year before choosing service parts.
Belts, filters, electrical parts, clutch and PTO components, and hydraulic items can vary by setup. Exact part numbers require a parts catalog, manual, or trusted supplier source before making recommendations.
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
