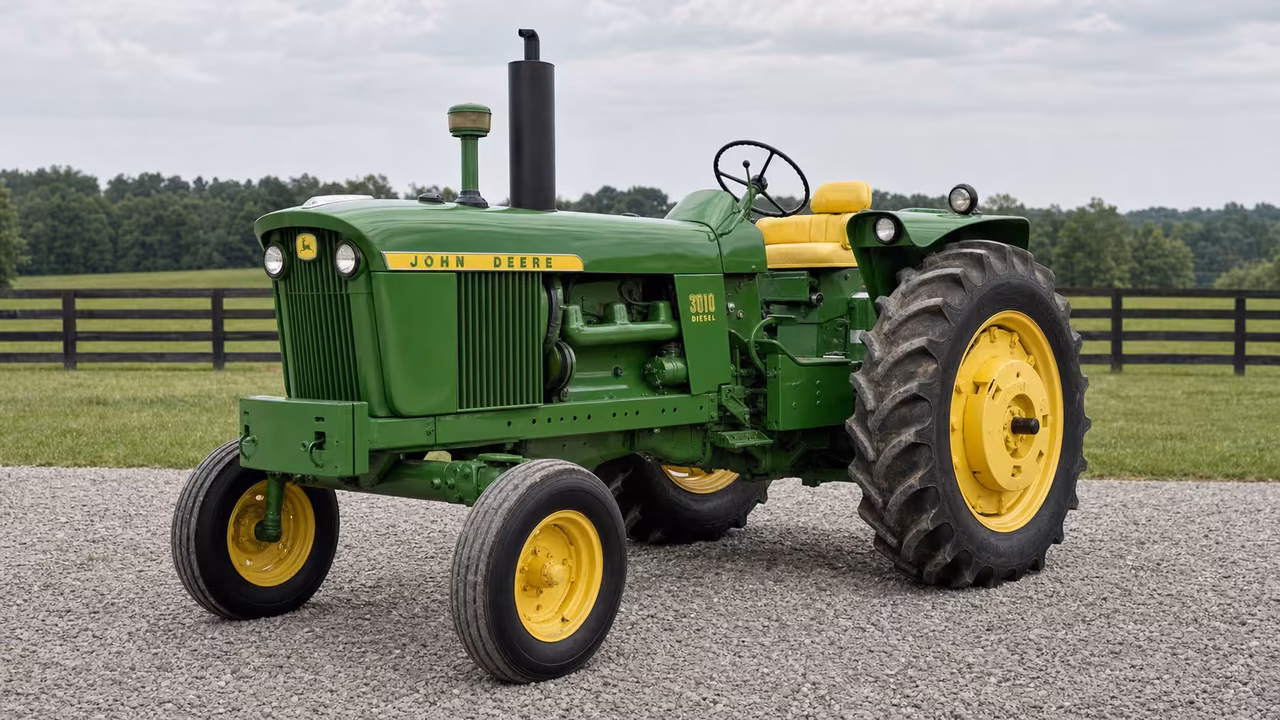

John Deere 3010 Overview
The John Deere 3010 was built from 1961 through 1963 in Row-Crop and Standard forms. Engine choice, transmission, PTO, and hydraulic setup affect how a particular tractor should be read against the specs.
Use serial data and the linked manuals or test reports before ordering parts or planning service. The 3010 sits early in Deere's New Generation line, so checking the exact configuration matters more than treating every 3010 listing as interchangeable.
John Deere 3010 Quick Answers
- Production yearsThe John Deere 3010 was produced from 1961 through 1963.
- PowerPublished power data includes 59.44 hp (44.3 kW) drawbar at 52.77 hp (39.4 kW); match those figures to the documented engine/transmission setup before treating them as model-wide.
- EngineEngine options include 201 ci 3.3 L and 254 ci 4.2 L.
- PTO and hitchRear PTO: 540/1000 (independent); rear hitch: Category II.
- Service capacityHydraulic system capacity listed as 9.5 gal (36.0 L).
Engine and Power
Engine options include 201 ci (3.3 L) gasoline and 254 ci (4.2 L) diesel, with LP-gas variants using the same displacement. Rated speed is 2200 rpm and starting is electric.
Gasoline engine
John Deere / gasoline / 4-cylinder / liquid-cooled inline
| Displacement | 201 ci 3.3 L |
|---|---|
| Bore Stroke | 4.00x4.00 inches 102 x 102 mm |
| Air Cleaner | oil bath |
| Compression | 7.5:1 |
| Rated Rpm | 2200 |
| Starter | electric |
| Starter Volts | 12 |
Diesel engine
John Deere / diesel / 4-cylinder / liquid-cooled inline
| Displacement | 254 ci 4.2 L |
|---|---|
| Bore Stroke | 4.125x4.75 inches 105 x 121 mm |
| Air Cleaner | oil bath |
| Compression | 16.4:1 |
| Rated Rpm | 2200 |
| Starter | electric |
| Starter Volts | 24 |
LP-gas engine
John Deere / LP gas / 4-cylinder / liquid-cooled inline
| Displacement | 201 ci 3.3 L |
|---|---|
| Bore Stroke | 4.00x4.00 inches 102 x 102 mm |
| Air Cleaner | oil bath |
| Compression | 7:1 |
| Rated Rpm | 2200 |
| Starter | electric |
| Starter Volts | 12 |
Manufacturer
Manufacture years
Tested PTO
Tested drawbar
Transmission
Transmission is John Deere Syncro-Range, with 8 forward and 3 reverse, and a dry-disc clutch.
John Deere Syncro-Range
| Name | John Deere Syncro-Range |
|---|---|
| Type | partially synchronized |
| Gears | 8 forward and 3 reverse |
| Clutch | dry disc |
PTO and Hitch
Rear PTO is independent at 540/1000 (1.375). Mid PTO is independent at 1000 (1.375). Rear hitch is typically Category II for many configurations.
Rear PTO
Rear PTO type
Engine RPM
Rear hitch
Hydraulics
Hydraulics are closed center, 2250 psi (155.1 bar) with 2 valves and a hydraulic capacity of 9.5 gal (36.0 L).
Type
Capacity
Pressure
Valves
Fluids, Battery, and Service Facts
Maintenance notes reflect hydraulic capacity and a 12-volt electrical system; fluid types, filters, belts, and battery group require catalog or manual confirmation.
Fuel tank
Hydraulic system
Battery volts
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Weight
Front tire
Rear tire
Ag front
Ag rear
Electrical
Electrical rows are included when documented.
Ground
Battery volts
Serial Number Lookup
Serial rows help narrow the 3010 by model year; prefixes, regional builds, and serial breaks require documentation before applying year tables.
1961
1962
1963
final
Manuals and Documents
Use these links to check the operator manual, service manual, parts catalog, or test report that matches the tractor's serial range and equipment.
When a source covers more than one model or variant, confirm the fuel type, transmission, PTO setup, and serial range before using it for parts or service.
- John Deere 3010 Row-Crop and Standard Tractors Operators ManualOperators manual for John Deere 3010 Row-Crop and Standard Tractors (OMR32385).Open source
- John Deere 3010 Row Crop Standard Tractor Operator Manual (OMR32385) — TherepairmanualOperator manual for 3010 Row-Crop Standard Tractor; 84 pages; third-party hosting.Open source
- John Deere 3010 Operator Manual (OMR32385) listing in Deere catalogOfficial Deere price/catalog page indicating availability of the 3010 operator manual (OMR32385).Open source
- John Deere 3010 Parts ManualParts manual for John Deere 3010 (diesel/gas/LP variants) and related family (3010/3020).Open source
- John Deere 3010 Parts Manual (BLTTanks PDF)Open-cab/row-crop/standard variants; includes sections on engine, hydraulics, PTO, transmission.Open source
- Nebraska Tractor Test 762: John Deere 3010 DieselNebraska Tractor Test Lab report for John Deere 3010 Diesel, 1960; includes PTO and drawbar power, fuel use, and test conditions.Open source
Parts Checks Before Ordering
Do not order John Deere 3010 parts from the model name alone. Match the part to the tractor's model code, serial range, engine, transmission, and PTO setup.
Fluids, filters, belts, electrical parts, clutch and PTO parts can vary by setup. Exact part numbers need a parts catalog, manual, or trusted supplier source before making a purchase.
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
