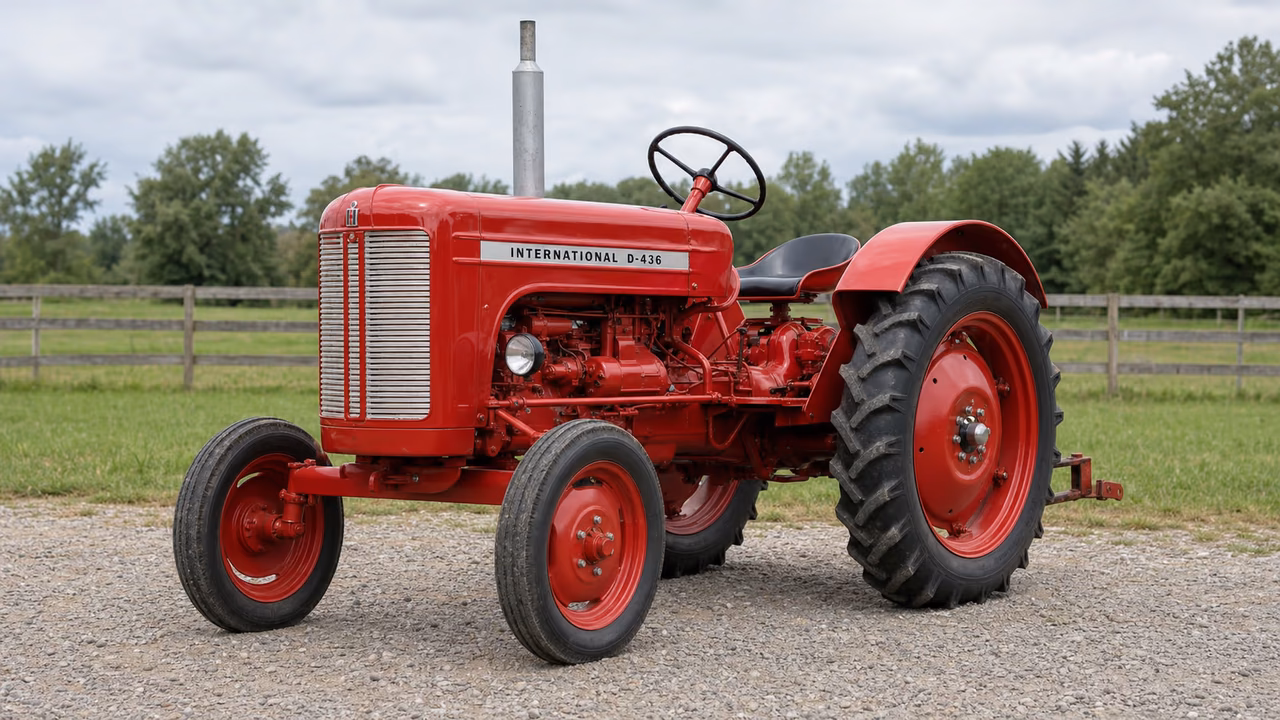

International Harvester D-436 Overview
The International Harvester D-436 was produced from 1959 through 1962. Its 148.5 ci (2.4 L) engine is listed at 39 gross hp, 1900 rpm, and 108 lb-ft of torque. The Agriomatic transmission has 8 forward and 2 reverse gears, alongside a 540 rear PTO and II/I rear hitch. Fuel capacity is 7.9 gal, and listed weight is 3,142 pounds. Total production is listed at 7,243 tractors.
International Harvester D-436 Quick Answers
- Production years1959-1962
- Engine148.5 ci (2.4 L), 39 gross hp at 1900 rpm
- TransmissionAgriomatic, 8 forward and 2 reverse
- Fuel capacity7.9 gal (29.9 L)
Engine and Power
The 148.5 ci engine is listed at 39 gross hp and 1900 rpm, with an oil-bath air cleaner.
Diesel engine
| Displacement | 148.5 ci 2.4 L |
|---|---|
| Air Cleaner | oil bath |
| Rated Rpm | 1900 |
| Torque | 108 lb-ft 146.4 Nm |
| Engine Oil Capacity | 6.3 qts 6.0 L |
| Coolant Capacity | 14.5 qts 13.7 L |
Manufacture years
Transmission
The Agriomatic transmission is listed with 8 forward and 2 reverse gears.
Agriomatic
| Name | Agriomatic |
|---|---|
| Gears | 8 forward and 2 reverse |
PTO and Hitch
The rear PTO is listed as 540 (1.375), and the rear hitch is II/I.
Rear PTO type
Rear hitch
Fluids, Battery, and Service Facts
Listed service capacities include 6.3 qts of engine oil, 14.5 qts of coolant, and a 7.9-gal fuel tank.
Fuel tank
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
