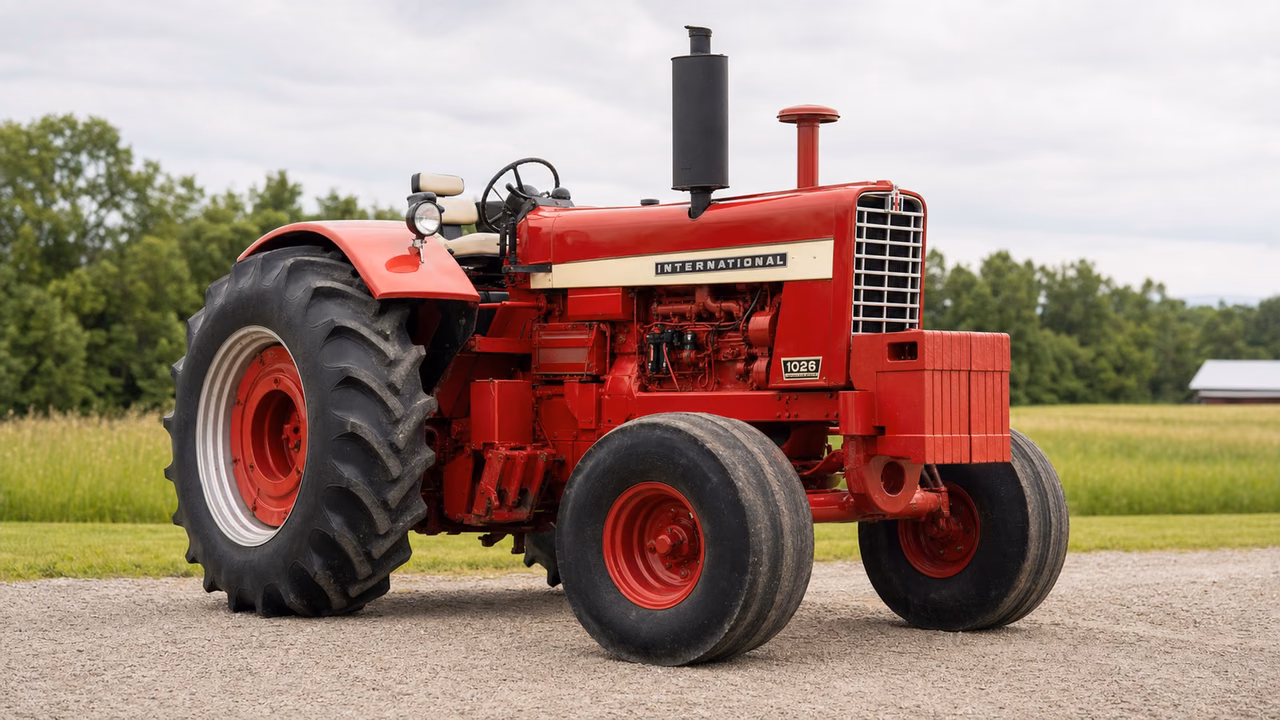

International Harvester 1026 Overview
The International Harvester 1026 was built from 1970-1971. Recorded details include engine displacement of 406.9 ci 6.7 L, gear count of infinite forward and reverse (2-range), rear PTO speed of 1000, fuel capacity of 42 gal 159.0 L, listed weight of 11100 lbs 5034 kg. Together, those figures give owners a practical starting point when comparing engine, driveline, PTO, hydraulic, capacity, and chassis details for this particular tractor. They also provide a useful reference for routine checks, repairs, service planning, and equipment matching.
International Harvester 1026 Quick Answers
- Production years1970-1971
- Engine displacement406.9 ci 6.7 L
- Transmissioninfinite forward and reverse (2-range)
- Rear PTO1000
Engine and Power
The listed engine details include engine displacement of 406.9 ci 6.7 L.
Diesel engine
| Displacement | 406.9 ci 6.7 L |
|---|---|
| Bore Stroke | 4.321x4.625 inches 110 x 117 mm |
| Rated Rpm | 2400 |
| Coolant Capacity | 24 qts 22.7 L |
Manufacture years
Transmission
The transmission record notes gear count of infinite forward and reverse (2-range).
Transmission
| Type | hydrostatic |
|---|---|
| Gears | infinite forward and reverse (2-range) |
PTO and Hitch
PTO and hitch details include rear PTO speed of 1000.
Rear PTO
Rear PTO type
Rear hitch
Fluids, Battery, and Service Facts
Service-related details include fuel capacity of 42 gal 159.0 L.
Fuel tank
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
