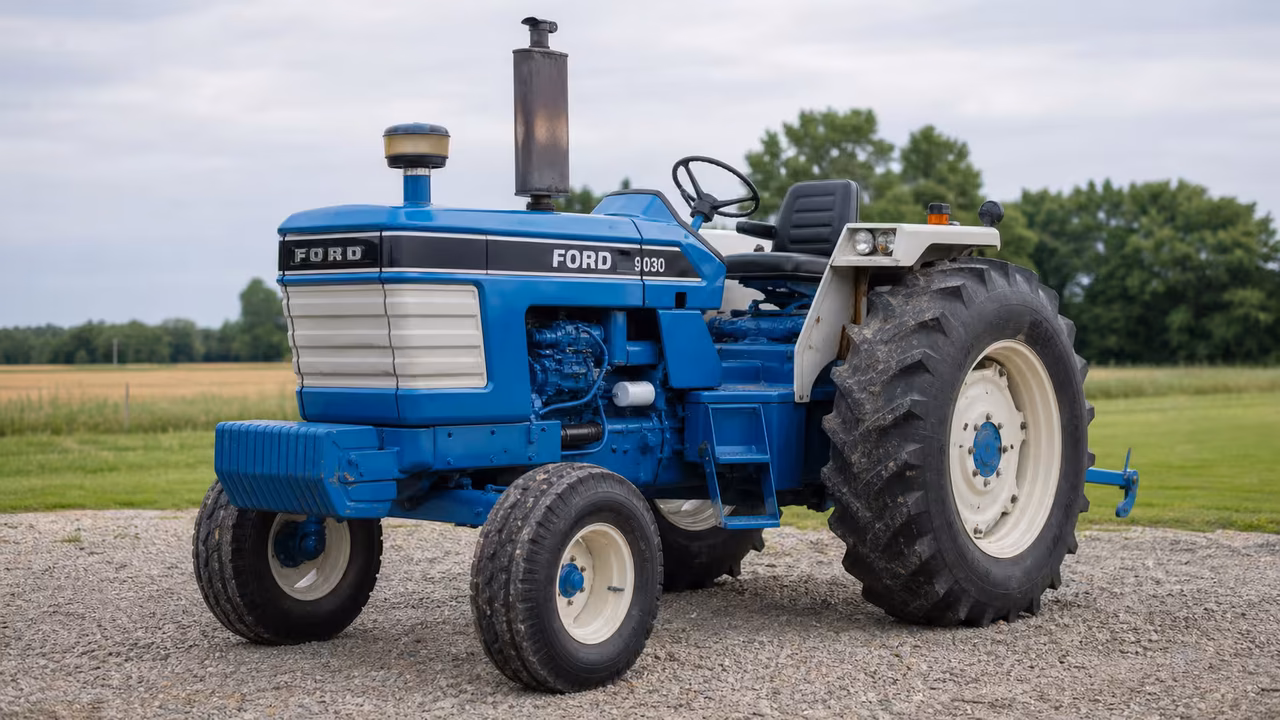

Ford 9030 Overview
Ford 9030 was built from 1990-1997. The published engine record lists a 268 ci 4.4 L engine with a published 116 hp 86.5 kW rating at 2500 rpm. The published drivetrain is listed as hydrostatic transmission and infinite forward and reverse (3-range) gears.
The rear PTO is listed as independent rear PTO and 540/1000 PTO. Hydraulic specifications list closed-center load-sensing hydraulics and 24 gpm 90.8 lpm flow. The rear hitch is listed as a Category II/I rear hitch, 6500 lbs 2948 kg listed lift, and position control. Published capacities include 45 gal 170.3 L fuel capacity, 15 qts 14.2 L engine oil capacity, 25.6 qts 24.2 L coolant capacity, and 10.5 gal 39.7 L hydraulic-system capacity. Published weight listings include 10150 lbs 4604 kg.
Ford 9030 Quick Answers
- When was the Ford 9030 built?Ford 9030 is listed from 1990-1997. Use the full identification tag and configuration details to narrow down an individual machine.
- What engine is listed for a Ford 9030?The published engine record lists a 268 ci 4.4 L engine with a published 116 hp 86.5 kW rating at 2500 rpm. Match the engine before applying a setting, capacity, or parts detail to a particular tractor.
- What transmission does the Ford 9030 use?The published drivetrain is listed as hydrostatic transmission and infinite forward and reverse (3-range) gears. Identify the installed transmission and serial number before using repair or parts information.
- What PTO is listed for the Ford 9030?The rear PTO is listed as independent rear PTO and 540/1000 PTO. Confirm the installed PTO equipment and driveline arrangement before implement setup or diagnosis.
- What hydraulic system is listed?Hydraulic specifications list closed-center load-sensing hydraulics and 24 gpm 90.8 lpm flow. Installed valves, remotes, and equipment must be identified on the tractor before diagnosis or parts work.
- Which capacity and chassis details matter?Published capacities include 45 gal 170.3 L fuel capacity, 15 qts 14.2 L engine oil capacity, 25.6 qts 24.2 L coolant capacity, and 10.5 gal 39.7 L hydraulic-system capacity. The rear hitch is listed as a Category II/I rear hitch, 6500 lbs 2948 kg listed lift, and position control. Published weight listings include 10150 lbs 4604 kg.
Engine and Power
The published engine record lists a 268 ci 4.4 L engine with a published 116 hp 86.5 kW rating at 2500 rpm. Confirm the engine before applying a specification, capacity, or parts detail to a particular tractor.
Diesel engine
Ford BSD444T / turbocharged diesel / 4-cylinder / liquid-cooled inline
| Displacement | 268 ci 4.4 L |
|---|---|
| Bore Stroke | 4.40x4.40 inches 112 x 112 mm |
| Power | 116 hp 86.5 kW |
| Air Cleaner | dry |
| Compression | 17.1:1 |
| Rated Rpm | 2500 |
| Idle Rpm | 1000-2725 |
| Firing Order | 1-3-4-2 |
| Starter Volts | 12 |
| Engine Oil Capacity | 15 qts 14.2 L |
| Coolant Capacity | 25.6 qts 24.2 L |
| Intake Valve Clearance | 0.015 inches (cold) 0.381 mm |
| Exhaust Valve Clearance | 0.018 inches (cold) 0.457 mm |
Manufacture years
Transmission
The published drivetrain is listed as hydrostatic transmission and infinite forward and reverse (3-range) gears. Match the installed transmission and serial number before treating a repair or parts detail as a direct match.
Transmission
| Type | hydrostatic |
|---|---|
| Gears | infnite forward and reverse (3-range) |
PTO and Hitch
The rear PTO is listed as independent rear PTO and 540/1000 PTO. Confirm the actual shaft, PTO equipment, and driveline behavior before setting up an implement.
Rear PTO
Rear PTO type
Rear hitch
Rear lift at 24 inches
Hydraulics
Hydraulic specifications list closed-center load-sensing hydraulics and 24 gpm 90.8 lpm flow. A listing does not identify every valve, remote, or attachment fitted to an individual tractor.
Type
Capacity
Pump flow
Fluids, Battery, and Service Facts
Published capacities include 45 gal 170.3 L fuel capacity, 15 qts 14.2 L engine oil capacity, 25.6 qts 24.2 L coolant capacity, and 10.5 gal 39.7 L hydraulic-system capacity. Use model- and configuration-matched literature for fluid grades, intervals, fill procedures, and adjustment details.
Fuel tank
Hydraulic system
Battery volts
Battery CCA
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Configuration-specific values are split out where the same model has documented differences by engine, transmission, or equipment.
Wheelbase
Weight
Length
Width
Front tire
Rear tire
Ag front
- 16.9x28
- 14.9x28
Ag rear
- 16.9x28
- 14.9x28
Electrical
Electrical rows are included when documented.
Ground
Charging system
Charging amps
Battery volts
Serial Number Lookup
Serial rows are shown where documented.
1991
1992
1993
1994
1995
1996
1997
location
Manuals and Documents
New Holland's legacy Ford support route is a practical starting point for catalog and dealer references. Use the model and serial number to narrow the result before relying on a document or diagram.
For any repair or order, record the full serial number, engine, transmission, PTO arrangement, hydraulic equipment, axle or drive configuration, and installed options before relying on a document or illustration.
Parts catalog
- New Holland legacy Ford tractor parts supportparts matching
Official New Holland route for legacy Ford tractors. Use the model and serial number before relying on a catalog or diagram.
Open Ford parts support
Parts Checks Before Ordering
Start with the tractor's full serial number, then identify the engine, transmission, PTO, hydraulic equipment, axle or drive configuration, and installed options. Model and production years alone do not confirm fitment.
A parts catalog can help identify assemblies and reference numbers, but it does not prove fitment for an individual Ford 9030. Verify the tag and the actual tractor before ordering.
- Legacy Ford parts supportOfficial New Holland route for legacy Ford tractors. Match the model, serial number, and installed equipment before ordering.Open Ford parts support
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
