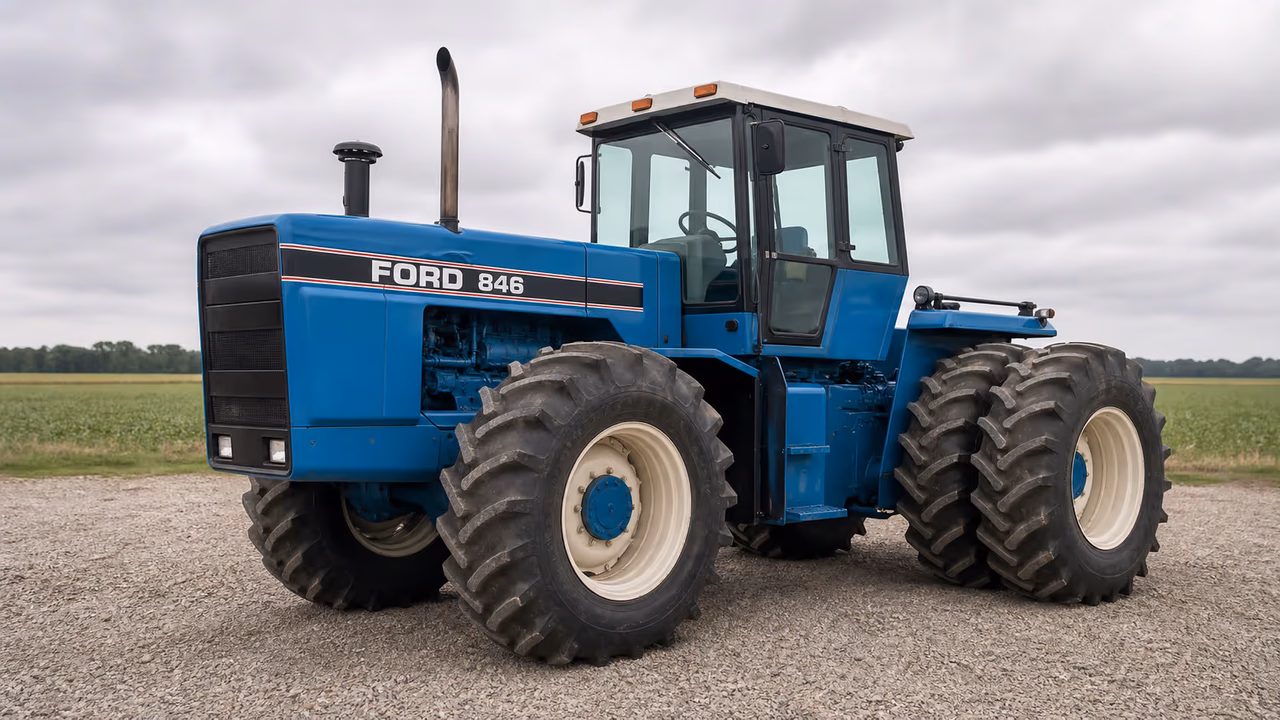

Ford 846 Overview
Built from 1989 through 1993, the Ford 846 uses a 611 ci (10.0 L) diesel engine rated at 230 hp and 2100 rpm. Its independent 1000 PTO, III rear hitch, and closed-center load-sensing hydraulic system support its large-tractor layout. Hydraulic pressure is 2250 psi with 25.2 gpm pump flow. The tractor carries 246 gal of fuel and has a listed weight range of 18000 to 23000 pounds. The serial plate is on the cab door post.
Ford 846 Quick Answers
- YearsProduced from 1989 through 1993.
- Engine611 ci (10.0 L) diesel rated at 230 hp and 2100 rpm.
- Rear PTOIndependent 1000 PTO with a 1.75 shaft.
- HydraulicsClosed-center load-sensing system with 25.2 gpm pump flow.
Engine and Power
The 611 ci diesel engine is rated at 230 hp and 2100 rpm.
Diesel engine
| Displacement | 611 ci 10.0 L |
|---|---|
| Rated Rpm | 2100 |
Manufacture years
Engine
PTO and Hitch
The independent 1000 PTO is paired with a III rear hitch.
Rear PTO
Rear PTO type
Rear hitch
Hydraulics
Closed-center load-sensing hydraulics are rated at 2250 psi with 25.2 gpm pump flow.
Type
Capacity
Pressure
Pump flow
Fluids, Battery, and Service Facts
Fuel capacity is 246 gal and hydraulic system capacity is 15.3 gal.
Fuel tank
Hydraulic system
Serial Number Lookup
The serial number plate is located on the cab door post.
location
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
