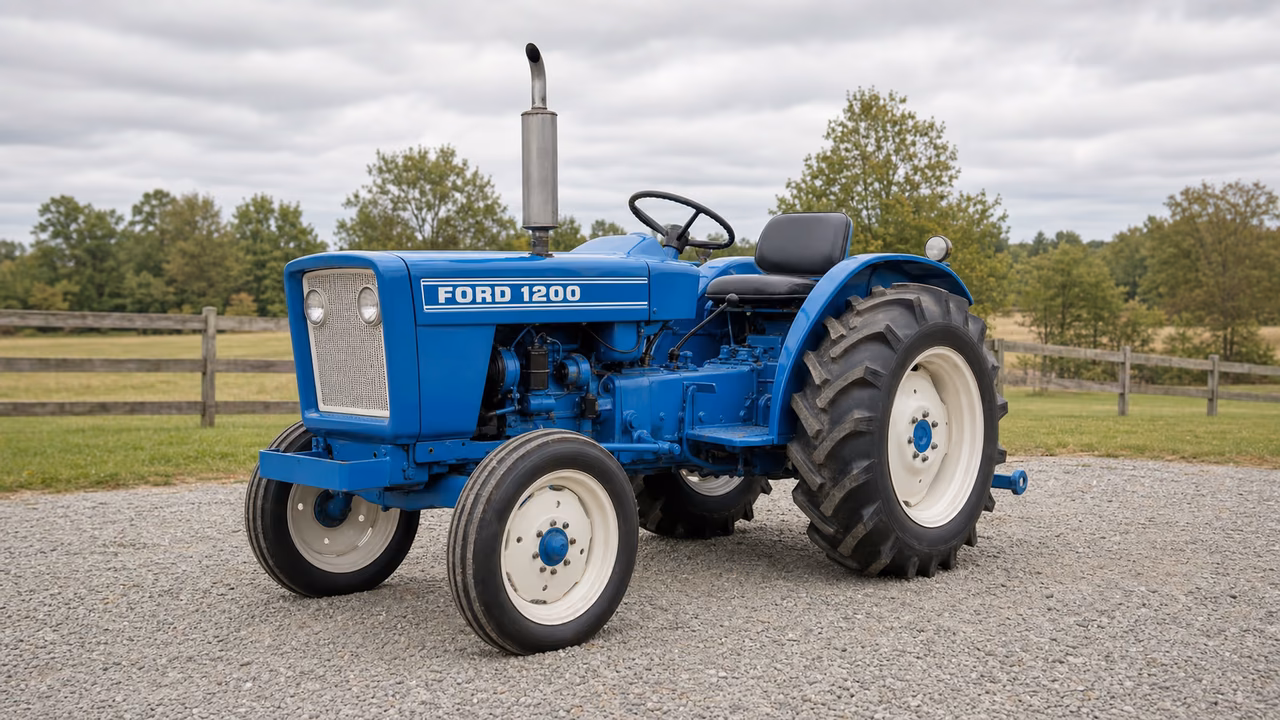

Ford 1200 Overview
The Ford 1200 was produced from 1979 through 1982. Its 49.1 ci (0.8 L) engine is listed at 15.3 hp and 2,700 rpm. The tractor has 10 forward and 2 reverse gears, a Category I rear hitch with 881-lb lift at the ends, and a 540 rear PTO. The hydraulic system is open center. Listed capacities include 3.5 gal of fuel, 3.5 qts of engine oil, and 5 gal for the hydraulic system. Listed weight is 1,344 pounds, and the serial number is above the front axle on the left.
Ford 1200 Quick Answers
- Production years1979-1982
- Engine49.1 ci (0.8 L), 15.3 engine hp at 2700 rpm
- Transmission10 forward and 2 reverse
- Fuel capacity3.5 gal (13.2 L)
Engine and Power
The 49.1 ci engine is listed at 15.3 hp and 2,700 rpm, with glow plugs for pre-heating.
Diesel engine
| Displacement | 49.1 ci 0.8 L |
|---|---|
| Power | 15.3 hp 11.4 kW |
| Pre Heating | glow plugs |
| Rated Rpm | 2700 |
| Engine Oil Capacity | 3.5 qts 3.3 L |
Manufacture years
Transmission
The Ford 1200 is listed with 10 forward and 2 reverse gears.
10-speed transmission
| Gears | 10 forward and 2 reverse |
|---|
PTO and Hitch
The rear PTO is transmission driven at 540, alongside a Category I rear hitch with 881-lb listed lift at the ends.
Rear PTO
Rear PTO type
Rear hitch
Fluids, Battery, and Service Facts
Listed service capacities include 3.5 qts of engine oil, 3.5 gal of fuel, and 5 gal for the hydraulic system.
Fuel tank
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
