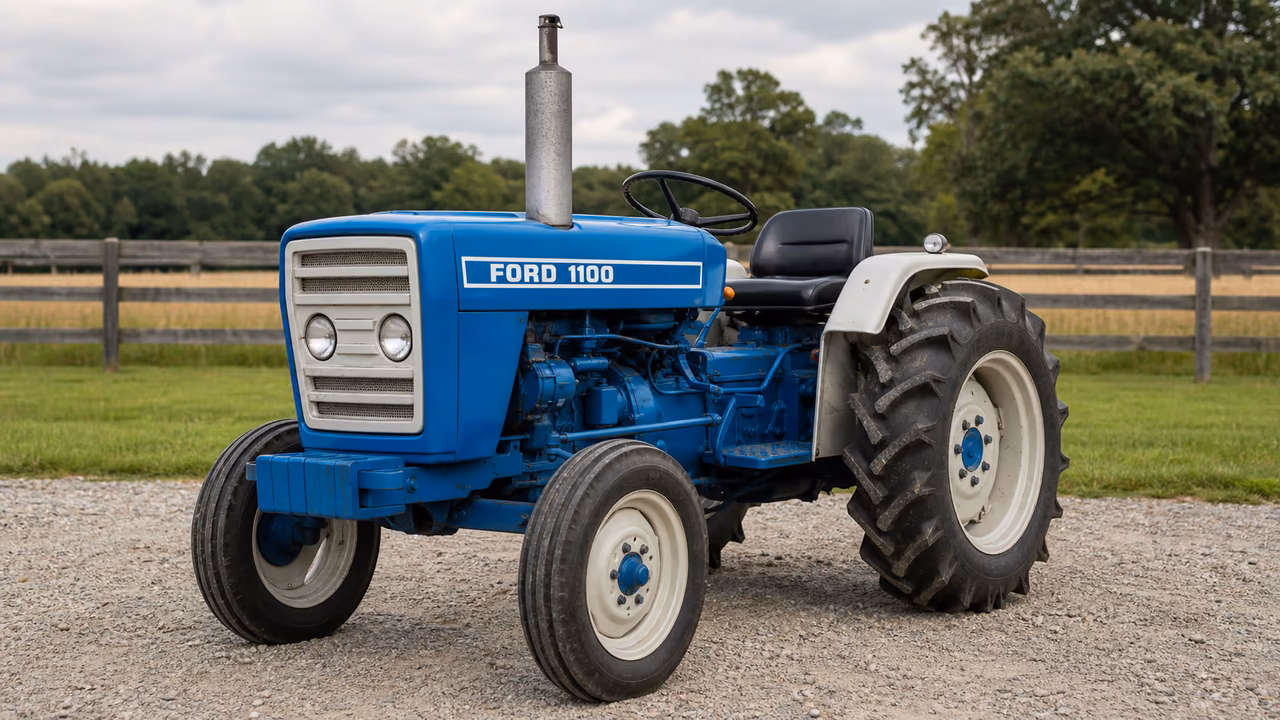

Ford 1100 Overview
Built from 1979 through 1982, the Ford 1100 uses a 43.1 ci (0.7 L) engine listed at 12.5 hp and 2600 rpm. The gear transmission has 10 forward and 2 reverse gears, while the transmission-driven rear PTO is rated at 540. A Category I rear hitch and open-center hydraulics are listed. Fuel capacity is 3.5 gal, and weight ranges from 1,231 to 1,344 pounds across the listed configurations.
Ford 1100 Quick Answers
- Production years1979-1982
- Engine43.1 ci (0.7 L) engine, 12.5 hp at 2600 rpm
- TransmissionGear, 10 forward and 2 reverse
- Weight1231 to 1344 lbs (558 to 609 kg)
Engine and Power
The 43.1 ci engine is listed at 12.5 hp and 2600 rpm, with a dry air cleaner and glow plugs.
Diesel engine
| Displacement | 43.1 ci 0.7 L |
|---|---|
| Air Cleaner | dry |
| Pre Heating | glow plugs |
| Rated Rpm | 2600 |
| Engine Oil Capacity | 3.5 qts 3.3 L |
Manufacture years
Engine
Transmission
The Ford 1100 uses a gear transmission with 10 forward and 2 reverse gears.
10-speed gear
| Type | gear |
|---|---|
| Gears | 10 forward and 2 reverse |
PTO and Hitch
The rear PTO is transmission-driven and listed as 540 (1.375).
Rear PTO
Rear PTO type
Rear hitch
Fluids, Battery, and Service Facts
Listed service capacities include 3.5 qts of engine oil, 3.5 gal of fuel, and 5 gal for the hydraulic system.
Fuel tank
Hydraulic system
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
