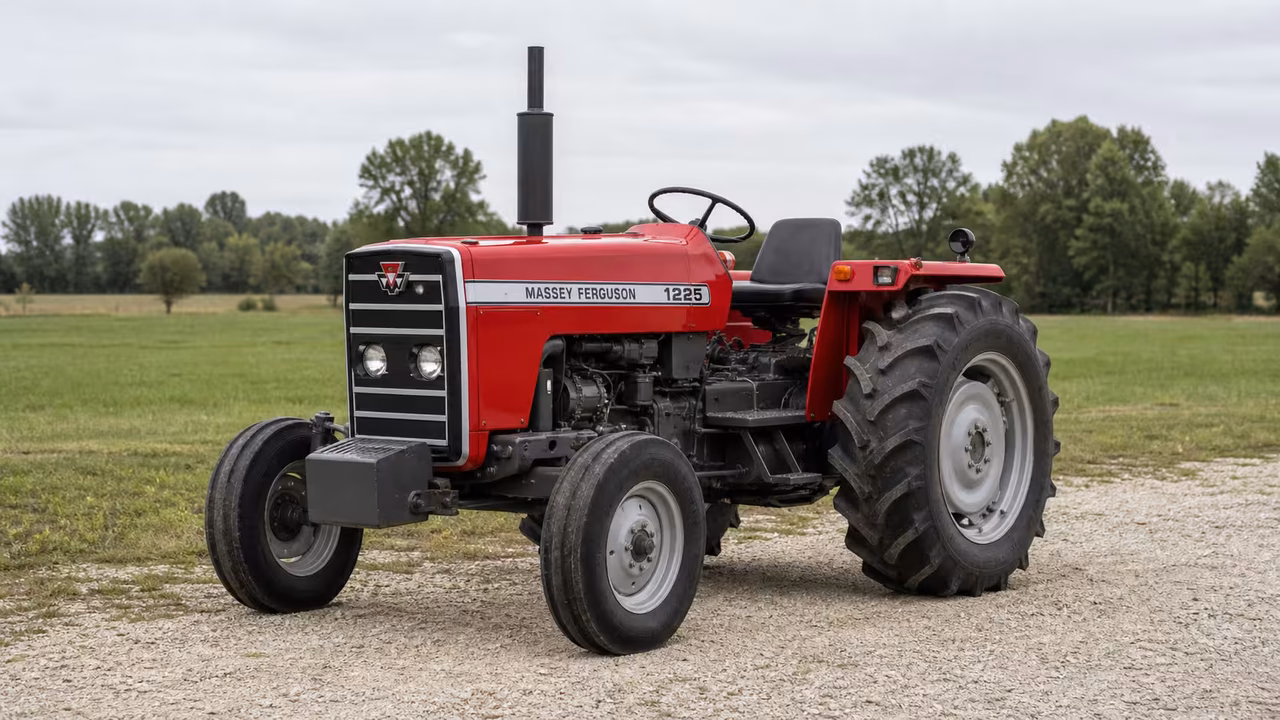

Massey Ferguson 1225 Overview
Massey Ferguson 1225 was built from 1999-2002. The published engine record lists a 68.5 ci 1.1 L engine with published gross and net ratings of 24.3 hp 18.1 kW and 22.5 hp 16.8 kW at 2800 rpm. Transmission details differ by configuration; the individual options are shown in the transmission section.
The rear PTO is listed as 540 (1.375) PTO and 540@2732 (gear) engine rpm for the published PTO setting. Hydraulic specifications list open center hydraulics, 2.6 gpm 9.8 lpm flow, and 1990 psi 137.2 bar pressure. The rear hitch is listed as a Category I rear hitch, 1210 lbs 548 kg listed lift, and position control. Published capacities include 6.1 gal 23.1 L fuel capacity, 2.9 qts 2.7 L engine oil capacity, 7.5 qts 7.1 L coolant capacity, and 3.7 gal 14.0 L hydraulic-system capacity. Published weight listings include 1367 to 1499 pounds.
Massey Ferguson 1225 Quick Answers
- When was the Massey Ferguson 1225 built?Massey Ferguson 1225 is listed from 1999-2002. Use the full identification tag and configuration details to narrow down an individual machine.
- What engine is listed for a Massey Ferguson 1225?The published engine record lists a 68.5 ci 1.1 L engine with published gross and net ratings of 24.3 hp 18.1 kW and 22.5 hp 16.8 kW at 2800 rpm. Match the engine before applying a setting, capacity, or parts detail to a particular tractor.
- What transmission does the Massey Ferguson 1225 use?Published records identify more than one transmission configuration. Compare the individual transmission options, the full ID tag, and the installed drivetrain before using repair or parts information.
- What PTO is listed for the Massey Ferguson 1225?The rear PTO is listed as 540 (1.375) PTO and 540@2732 (gear) engine rpm for the published PTO setting. Confirm the installed PTO equipment and driveline arrangement before implement setup or diagnosis.
- What hydraulic system is listed?Hydraulic specifications list open center hydraulics, 2.6 gpm 9.8 lpm flow, and 1990 psi 137.2 bar pressure. Installed valves, remotes, and equipment must be identified on the tractor before diagnosis or parts work.
- Which capacity and chassis details matter?Published capacities include 6.1 gal 23.1 L fuel capacity, 2.9 qts 2.7 L engine oil capacity, 7.5 qts 7.1 L coolant capacity, and 3.7 gal 14.0 L hydraulic-system capacity. The rear hitch is listed as a Category I rear hitch, 1210 lbs 548 kg listed lift, and position control. Published weight listings include 1367 to 1499 pounds.
Engine and Power
The published engine record lists a 68.5 ci 1.1 L engine with published gross and net ratings of 24.3 hp 18.1 kW and 22.5 hp 16.8 kW at 2800 rpm. Confirm the engine before applying a specification, capacity, or parts detail to a particular tractor.
Diesel engine
| Displacement | 68.5 ci 1.1 L |
|---|---|
| Bore Stroke | 3.07x3.07 inches 78 x 78 mm |
| Fuel System | indirect injection |
| Air Cleaner | dry |
| Pre Heating | glow plugs |
| Compression | 22.5:1 |
| Rated Rpm | 2800 |
| Torque | 49.4 lb-ft 67.0 Nm |
| Torque Rpm | 2000 |
| Starter Volts | 12 |
| Engine Oil Capacity | 2.9 qts 2.7 L |
| Coolant Capacity | 7.5 qts 7.1 L |
Manufacture years
Transmission
Published records identify more than one transmission configuration. Compare the individual options with the tractor's full ID tag and installed drivetrain before treating a repair or parts detail as a direct match.
6-speed gear
| Type | gear |
|---|---|
| Gears | 6 forward and 2 reverse |
| Clutch | 184mm dry disc |
Transmission
| Type | hydrostatic |
|---|---|
| Gears | infinite forward and reverse (2-range) |
PTO and Hitch
The rear PTO is listed as 540 (1.375) PTO and 540@2732 (gear) engine rpm for the published PTO setting. Confirm the actual shaft, PTO equipment, and driveline behavior before setting up an implement.
Rear PTO type
Engine RPM
Rear hitch
Hydraulics
Hydraulic specifications list open center hydraulics, 2.6 gpm 9.8 lpm flow, and 1990 psi 137.2 bar pressure. A listing does not identify every valve, remote, or attachment fitted to an individual tractor.
Type
Capacity
Pressure
Pump flow
Total flow
Fluids, Battery, and Service Facts
Published capacities include 6.1 gal 23.1 L fuel capacity, 2.9 qts 2.7 L engine oil capacity, 7.5 qts 7.1 L coolant capacity, and 3.7 gal 14.0 L hydraulic-system capacity. Use model- and configuration-matched literature for fluid grades, intervals, fill procedures, and adjustment details.
Fuel tank
Hydraulic system
Battery volts
Battery CCA
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Wheelbase
Weight
Length
Width
Front tire
Electrical
Electrical rows are included when documented.
Ground
Charging system
Charging amps
Battery volts
Serial Number Lookup
Serial rows are shown where documented.
1999
2000
2001
2002
Manuals and Documents
AGCO Parts Books is a useful official starting point for catalog families and assemblies. Use the model, serial number, and installed equipment before relying on a diagram or parts number.
For any repair or order, record the full serial number, engine, transmission, PTO arrangement, hydraulic equipment, axle or drive configuration, and installed options before relying on a document or illustration.
Parts catalog
- AGCO Parts Booksparts matching
Official AGCO parts-catalog portal. Search with the model and serial number before treating a diagram or number as a direct match.
Open AGCO Parts Books
Parts Checks Before Ordering
Start with the tractor's full serial number, then identify the engine, transmission, PTO, hydraulic equipment, axle or drive configuration, and installed options. Model and production years alone do not confirm fitment.
A parts catalog can help identify assemblies and reference numbers, but it does not prove fitment for an individual Massey Ferguson 1225. Verify the tag and the actual tractor before ordering.
- Legacy Ford parts supportOfficial New Holland route for legacy Ford tractors. Match the model, serial number, and installed equipment before ordering.Open Ford parts support
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
