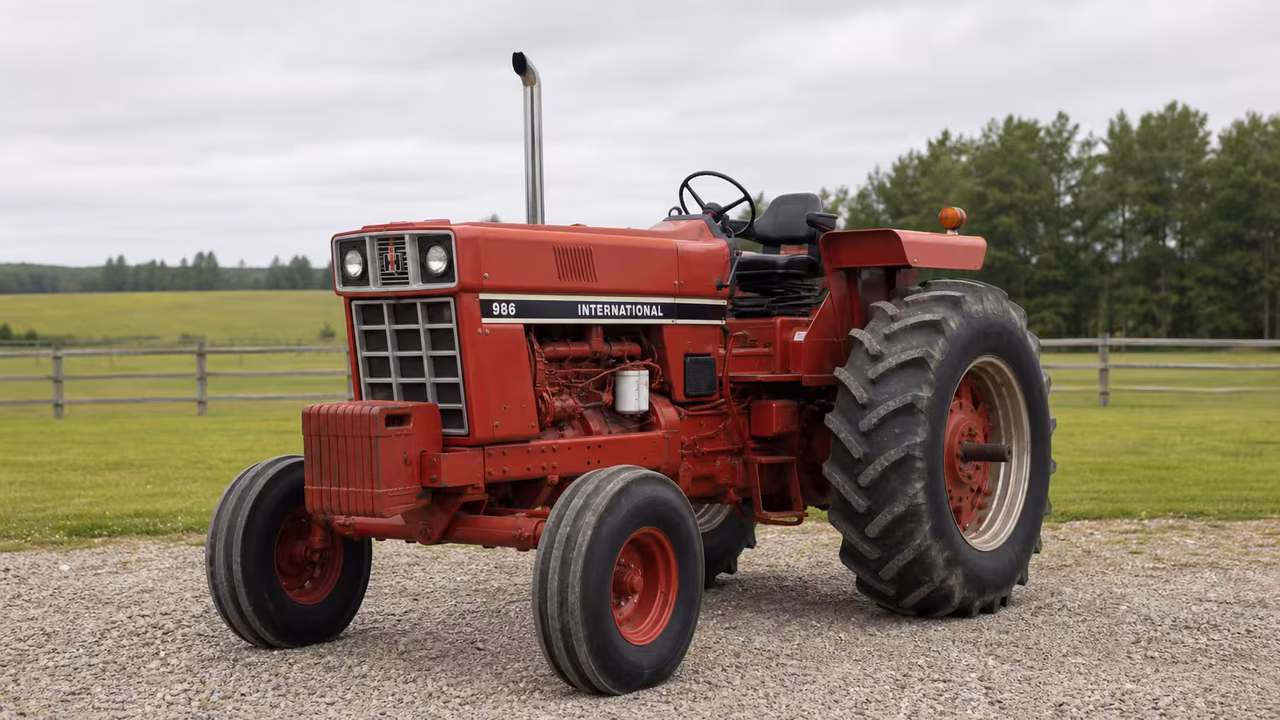

International Harvester 986 Overview
The International Harvester 986, produced 1976-1981, pairs a rugged 436 cubic inch diesel with a simple, durable layout that earned its keep on mid-size farms.
To verify a specific IH 986 configuration before ordering parts or performing service, consult the operator manuals and test reports linked here. Nebraska Tractor Test Data exists for the diesel variant, and operator manuals covering IH 986-family models provide context for controls, PTO behavior, and maintenance tasks.
Manuals and documents included here help confirm serial-range applicability, part-number matching, and proper maintenance steps, while keeping emphasis on matching by engine, transmission, and PTO setup rather than model name alone.
International Harvester 986 Quick Answers
- Production yearsThe International Harvester 986 was produced from 1976 through 1981.
- PowerPublished power data includes 105.68 hp 78.8 kW (PTO tested) and 90.15 hp 67.2 kW (drawbar tested). Map those figures to the documented engine and transmission setup before treating them as model-wide.
- EngineThe International Harvester 986 engine displacement is 436 ci 7.1 L.
- PTO and hitchThe IH 986 has a 540/1000 (1.375) rear PTO and a Category II rear hitch.
- Service capacityPublished capacities include engine oil capacity 14 qts 13.2 L; hydraulic system 22.5 gal 85.2 L; coolant capacity 26 qts 24.6 L.
Engine and Power
Engine: the IH 986 uses a 436 ci diesel with a rated 2400 rpm. Air cleaning is via a dual dry-element system.
Diesel engine
International Harvester D-436 / diesel / 6-cylinder / liquid-cooled
| Displacement | 436 ci 7.1 L |
|---|---|
| Bore Stroke | 4.30x5.00 inches 109 x 127 mm |
| Air Cleaner | dual dry element |
| Rated Rpm | 2400 |
| Coolant Capacity | 26 qts 24.6 L |
Manufacturer
Manufacture years
Tested PTO
Tested drawbar
PTO and Hitch
PTO and hitch: rear PTO is 540/1000 (1.375) with a Category II rear hitch; the rear PTO is independent in operation.
Rear PTO
Rear PTO type
Engine RPM
Rear hitch
Rear lift at 24 inches
Hydraulics
Hydraulics are open-center with two valves; hydraulic capacity is 22.5 gal.
Type
Capacity
Valves
Fluids, Battery, and Service Facts
Maintenance data includes engine oil capacity 14 qts, coolant capacity 26 qts, hydraulic capacity 22.5 gal, and a 12-volt electrical system with two batteries.
Fuel tank
Engine oil capacity
Hydraulic system
Battery volts
Battery CCA
Tires and Dimensions
Tire and dimension values can vary by wheel, axle, and configuration.
Wheelbase
Weight
Length
Width
Front tire
Rear tire
Ag front
Ag rear
Electrical
Electrical rows are included when documented.
Ground
Charging system
Charging amps
Battery volts
Serial Number Lookup
Serial numbers and year applicability help narrow the IH 986 by configuration; factory prefixes and regional builds require documentation before applying a year table.
1976
1977
1978
1979
1980
1981
Manuals and Documents
The documents below add manual, parts, and test context for the International Harvester 986. They are useful for controls, service categories, parts matching, and tested-performance details that do not fit into short spec rows.
Match coverage carefully before relying on a document for service decisions, especially when one manual, catalog, or report covers several models, fuel types, transmissions, or tractor variants.
- Farmall/International Harvester 786-1586 Operators Manual (IH O-786-1586)Operator manual covering IH 786, 886, 986 family; applicable to IH 986 models.Open source
- International Harvester 986 Tractor Operators ManualOperators manual for IH 986; reprint/aftermarket version.Open source
- IH International Harvester 986 Factory Service Repair ManualFactory service/repair manual for IH 986; includes maintenance and repair procedures.Open source
- Nebraska Tractor Test LaboratoryOfficial OECD-compliant tractor testing facility; conducts tractor tests and publishes results and procedures.Open source
- Nebraska Tractor Test Data 1980Nebraska test data for IH 986 diesel variant; includes test results and performance metrics.Open source
- Tractors | OECDOECD codes and guidelines used in tractor testing; relevant to OECD-compliant tests for older IH tractors.Open source
Parts Checks Before Ordering
Do not order International Harvester 986 parts from the model name alone. Match the part to the tractor's model code, serial range, engine, transmission, and PTO setup before selecting service parts.
Filters, fluids, belts, electrical parts, clutch and PTO parts, and hydraulic parts can vary by setup. Exact part numbers require a parts catalog, manual, or trusted supplier source before recommendations.
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
