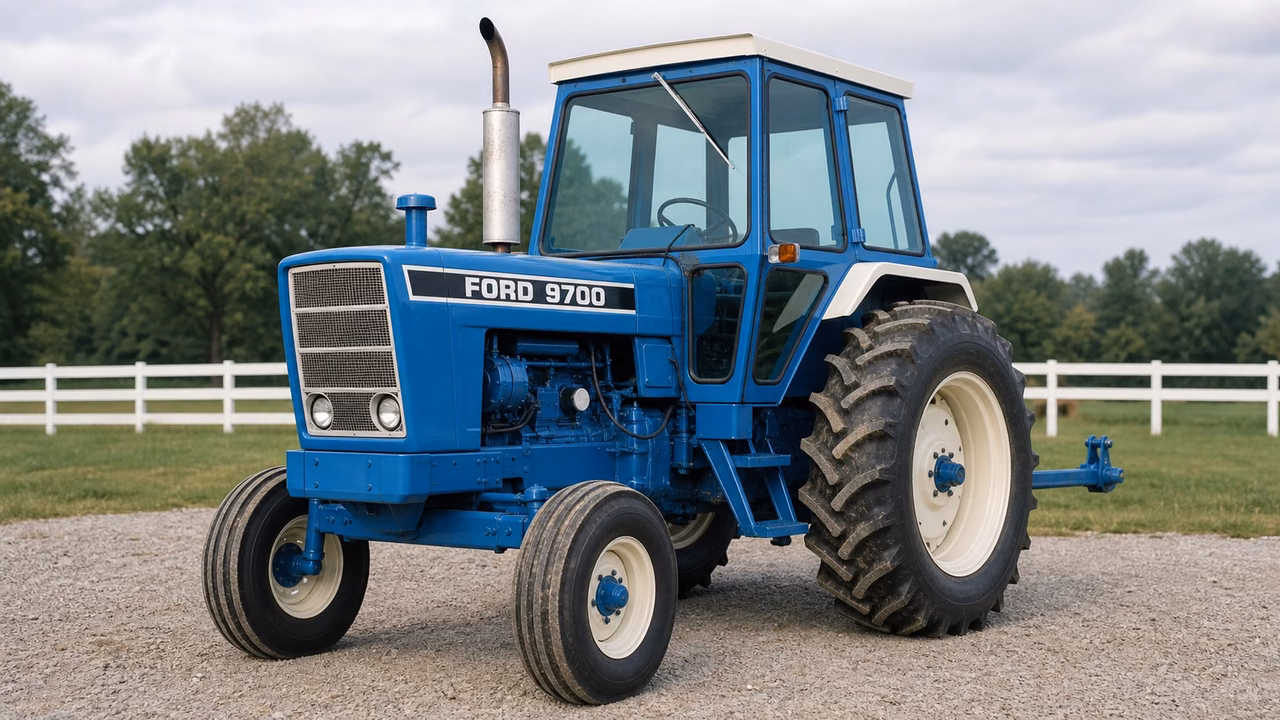

Ford 9700 Overview
The Ford 9700 was produced from 1977 to 1979 with a 401 ci (6.6 L) engine rated at 2,200 rpm. It uses a Dual Power transmission with a dry-disc clutch, an independent 540/1000 rear PTO, and a Type III rear hitch listed at 5,764 lb lift. For size and service planning, the tractor has a 58 gal (219.5 L) fuel tank, an operating weight from 10,900 to 12,860 lb, and open-center hydraulics with 15.5 gpm pump flow.
Ford 9700 Quick Answers
- YearsFord produced the 9700 from 1977 through 1979.
- EngineIt has a 401 ci (6.6 L) engine rated at 2,200 rpm.
- PTOThe independent rear PTO is listed at 540/1000.
- Fuel capacityThe fuel tank is listed at 58 gal (219.5 L).
Engine and Power
The 401 ci (6.6 L) engine is listed with a 2,200 rpm rating.
Diesel engine
| Displacement | 401 ci 6.6 L |
|---|---|
| Rated Rpm | 2200 |
| Engine Oil Capacity | 14 qts 13.2 L |
Manufacturer
Manufacture years
Transmission
The Ford 9700 is listed with a Dual Power transmission and dry-disc clutch.
8-speed gear
| Clutch | dry disc |
|---|
Dual Power
| Name | Dual Power |
|---|---|
| Clutch | dry disc |
PTO and Hitch
The independent rear PTO is listed at 540/1000, with a Type III rear hitch and 5,764 lb lift.
Rear PTO
Rear PTO type
Rear hitch
Rear lift
Hydraulics
Open-center hydraulics are listed with 15.5 gpm pump flow.
Type
Pump flow
Accuracy Note
Tractor specifications can vary by year, region, factory configuration, installed equipment, and later repairs. Match serial range, engine, transmission, PTO setup, and model code before ordering parts or doing service work.
